機器特點：The machine features.

一、高節能：High  efficient energy conservation

節約場地：saving space

一臺機器占地面積約40--60平方米：A machine covers an area of about 40--60square meters

人工：一臺機器相當于30--50人手工印花產量artificial:the printing output  of a machine  is equivalent to the output of

 30--50 people’s.

材料：節約手工印花1/3material:Save as much material as 1/3 of manual printing

產品下機可立刻包裝出貨，不需晾干（特殊產品除外）Products from the machines can be packaged  and shipped  immediately without being dried (except special products )

二、質量、效率quality and efficiency

產品100%無色差，產品優良率是100%，多色一機同時產出，只需三人操作，顏色少一機也可當二機生產線用，日產8000--16000片。

Products are 100% colorless difference, the excellent rate of products is 100%, multi-colored machine can be produced  at the same time, it only  needs three people to operate it and if there is less color ,one machine can also be used as two machine production line ,and it can produce 8000--12000pieces per day.

三、操作快捷方便it is convenient and quick to operate

網框固定方式獨特，卸網、裝網1--3分鐘，手工花色對位2--5分鐘，一般不塞網、擦網不取網，卸網再裝網對位精度不變。標尺+絲桿調位，對位精度0.02mm

Net frame is fixed by a unique way, it only needs 1--3minutes to unload ,assemble net and manual registration of design and color needs 2--5minutes.Under normal circumstances,the registration accuracy will not change if you do not plug,wipe or take the net or unload the net and then assemble the net. Sale and screw positioning,the registration accuracy is about 0.02mm.

四、適用applicable

適合各種：紡織布料、皮料、塑膠、玻璃等多種材料

各種漿料均可印花：膠漿、水漿、油墨、厚板、拔印、分色、發泡、植絨等多種印花工藝。

Suitable for many kinds of materials: textile fabric, leather,plastic, glass and many other materials.

各種漿料均可印花：膠漿、水漿、油墨、厚板、拔印、分色、發泡、植絨等多種印花工藝。

Every kinds of pulpy material can be printed: mucilage,the water slurry, printing ink, thick plate,discharge print, color separation, froth, pile coating and many types of printing arts.

五、智能控制系統intelligent control system

觸摸屏：可選多種印花模式，自由設定機器速度、烘干時間、刮刀次數、臺板預熱等多種性能。自行排查顯示機器故障，及培訓操作機器流程。實時顯示生產速度及總產量等多種功能。

    Touch screen: people can choose a variety of printing patterns, and free to set the speed , the time needed to dry ,the number of scraper and plate preheating of the machine  and other functions. It can check and display on its own when the machine is broken down and trained to operate the process of the machine.Moreover,it possesses many other functions such as displaying the speed of production and total yield at the moment when it begins to work.

六、印刷工位printing station

每個工位均可獨立操控：手動印花，手動烘干，可方便的進行投入切出并對整臺設備進行停啟操作。刮刀停留位，刮墨刀，回墨刀，壓力及高度獨立可調。Each station can be operated and controlled independently: manual printing, manual drying, it is easy to input and cut out ;what is more,it can start or end the equipment of integration .The staying position of scraper ,scraping knife, ink knife, pressure and height can be adjusted independently.

七、型號  配置model configuration

BH30基本型（三人操作一臺機）

BH31  BH30+不需上合膠自動加漿料=BH31型（2人操作一臺機）

BH32  BH30+BH31+電腦自動花色對位=BH32型（2人操作一臺機）

BH33  {BH30+BH31+BH32+自動放收裁片=BH33型}（1人操作一臺機）

BH30 basic model (it needs three persons to operate one machine)

BH31 BH30+不需上合膠自動加漿料=BH31型（2人操作一臺機）

BH31 BH30+ no glue is needed and it adds pulpy materials automatically   =BH31 type(it needs 2 persons to operate one machine)

BH32 BH30+BH31+電腦自動花色對位=BH32型（2人操作一臺機）

BH32 BH30+BH31+ the registration of design and color is operated automatically by computer=BH32 type (it needs 2 persons to operate one machine)

BH33 {BH30+BH31+BH32+自動放收裁片=BH33型}（1人操作一臺機）

BH33 {BH30+BH31+BH32+put the pieces automatically=BH33 type} (it needs 1 person to operate one machine)

印頭操作鍵： the operating keys of printing head

印頭：printing head

紅外線烘箱：

人機界面：

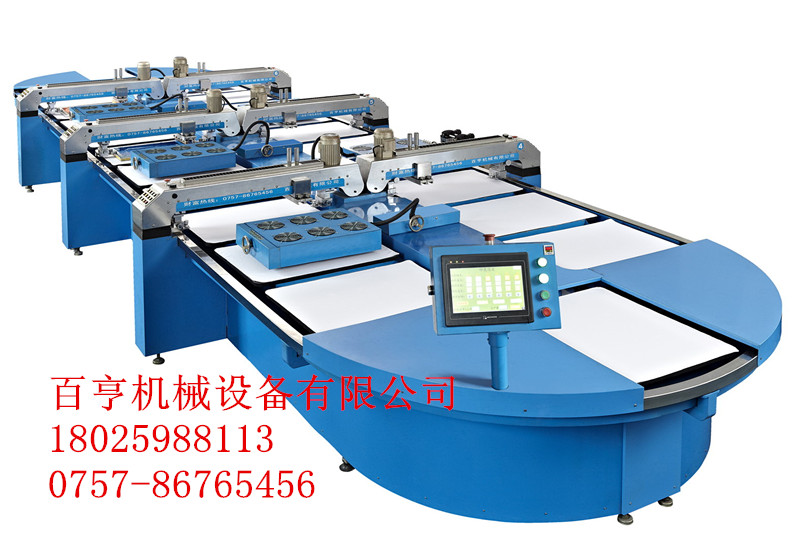

型號：BH30（基本型）全自動印花機

紅外線烘箱：Infrared drying oven:

人機界面：The man--machine Interface.
